Marine Simulation Platform
Marine Simulation Platform is a multifunctional digital simulation system for marine environments, which integrates fluid dynamics modeling, high-precision sensing, and virtual reality technology to simulate physical interactions and decision responses in scenarios such as ship navigation, deep-sea operations, and unmanned underwater vehicle control. It covers scientific research, training, and industrial applications.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Technical advantages
Multi physics field coupling simulation：
Support the coupling simulation of waves, wind fields, and flow fields, which can simulate the dynamic effects of different sea conditions (six level wave height ≤ 6m, wind speed ≤ 15m/s) on ships or platforms, with a calculation accuracy error of ≤ 3%;
Integrating sonar detection and optical imaging models to achieve underwater target recognition (resolution ≥ 0.1m) and environmental perception (visibility simulation range 0-50m).
Modular expansion capability：
It can carry equipment models such as AUV (Autonomous Underwater Vehicle) and USV (Unmanned Surface Vehicle), and support testing of cluster collaborative control algorithms;
Open API interface, compatible with MATLAB/Simulink, ROS and other development environments, supports custom task scripts and data protocols.
Real time data exchange：
Adopting CUDA multi-core parallel computing technology to achieve real-time visualization (refresh rate ≥ 60Hz) of large-scale ocean data fields (such as temperature salinity depth profiles);
Support hardware in the loop (HIL) testing, and verify control logic through linkage with real ECUs and sensors.
Product specification
|
Motion simulation: |
6-degree-of-freedom dynamic platform, maximum load of 300kg, response delay ≤ 15ms (servo electric cylinder drive) |
|
Power model: |
Ship propulsion system simulation (propeller thrust range 0-200kN), wind power efficiency simulation error ≤ 5% |
|
Data collection: |
Sensor sampling rate ≥ 1000Hz, supports synchronous recording of 12 types of ocean parameters (such as flow velocity, salinity, dissolved oxygen) |
|
Display system: |
4K surround screen projection (horizontal viewing angle 180 °), optional VR headset (binocular resolution 3840 × 2160) |
Product details
Application:
✅Marine scientific research and resource development:
Simulation of deep-sea floating platform operations (such as anchoring and positioning of semi submersible drilling platforms), supporting parameter optimization for extreme working conditions (water depth ≥ 3000m);
Renewable energy equipment testing (efficiency verification of wind powered unmanned platform).
✅Ship Engineering and Training:
Virtual simulation of ship navigation (3D modeling accuracy ≤ 2cm), simulating emergency collision avoidance, severe weather manipulation and other scenarios;
Driver/operator training, evaluating emergency response capabilities through physiological monitoring (eye tracking, heart rate).
✅Unmanned system verification:
AUV path planning and obstacle avoidance algorithm testing (supporting multi-objective collaborative tasks);
USV maritime search and rescue simulation, integrating infrared/radar sensor data fusion logic.

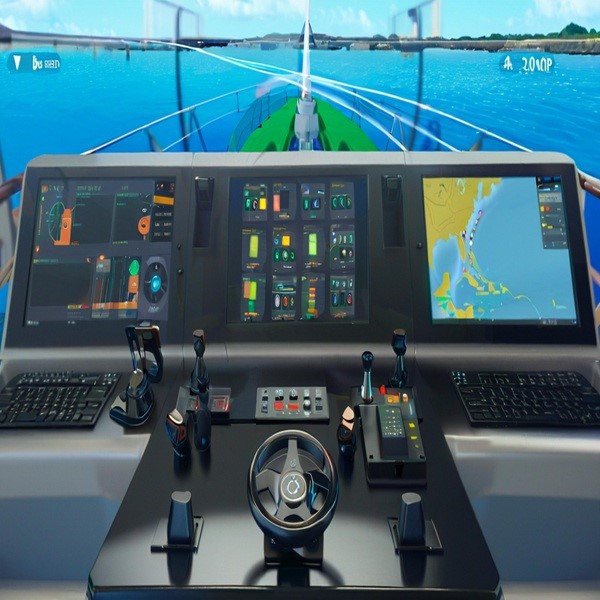

Photos of Marine Simulation Platform
Packaging and delivery
Packing: by container or as customers's required.
Delivery: deliver to major ports in your country.
FAQ
Q: Does it support importing custom ship models?
A: Provide standardized 3D modeling interface (FBX/OBJ format), supporting custom configuration of ship dynamics parameters (draft depth, stability height).
Q: Can underwater communication interruption scenarios be simulated?
A: Support simulation of sonar communication delay (adjustable from 0-10s) and data packet loss rate (0-30%) for fault-tolerant control algorithm development.
Q: System maintenance cycle and cost?
A: The hardware part requires quarterly lubrication testing (with an annual maintenance cost of approximately 70000 to 120000 yuan), and software upgrades support remote OTA (free basic updates).
Q: Deployment site requirements?
A: The standard laboratory requires a space of ≥ 50 square meters (including a safety buffer zone) and a power supply of 380V three-phase power (peak power ≤ 15kW).
Q: What is the budget range for the basic version system?
A: Research grade equipment (including 6-degree-of-freedom platform+single screen) costs approximately 800000 to 1.5 million yuan; Industrial grade customized solutions (cluster control+VR) require over 3 million yuan.
Q: Can a specific marine environment database be customized?
A: Support importing GIS data (such as South China Sea tidal models) or generating high-precision seabed topographic maps through satellite remote sensing data.
