6 DOF Rotational Platform
6 DOF Rotational Platform is a six degree of freedom motion system based on parallel mechanical structures such as the Stewart platform, which can achieve translation along the X/Y/Z axis and rotation around three axes (pitch, yaw, roll) in three-dimensional space. It is widely used in high-precision simulation, industrial testing, and dynamic positioning scenarios.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Core technology
High precision composite motion control:
Adopting a parallel structure and servo motor (or hydraulic drive), it supports nanometer level repetitive positioning accuracy (± 0.1 μ m) and millisecond level response speed, suitable for precision operation and extreme dynamic simulation (such as aircraft attitude adjustment).
Programmable composite motion modes (such as wave trajectory, multi axis linkage), combined with feedback sensors (encoder, IMU) to achieve closed-loop control and ensure motion stability.
Modular and high load design:
Support customized load configuration (up to 400kg), compatible with external modules such as integrated vibration tables and VR devices, and suitable for scientific research experiments or industrial testing needs.
Flexible structural types (straight rod type, rocker arm type, rope type), covering small-scale high-precision positioning to large-scale spatial movement scenarios (such as radio telescope feed cabin positioning).
Intelligent collaboration and scalability:
Supporting multi platform collaborative work through distributed communication interfaces (such as UDP/TCP) to meet synchronous simulation requirements in complex scenarios (such as multi drone formation simulation).
Compatible with development environments such as ROS and MATLAB, making it easy to develop secondary algorithms and program motion trajectories.
Product specification
|
Degree of freedom range: |
translation ± 500mm (single axis), rotation ± 30 ° (pitch/yaw/roll) |
|
Maximum load: |
Hydraulic type 400kg, electric type 200kg (customizable and expandable) |
|
Control accuracy: |
translation ± 0.1 μ m, rotation ± 0.01 °, dynamic response delay<5ms |
|
Drive mode: |
electric servo (high precision), hydraulic (high load), electromagnetic (high-frequency micro vibration) |
|
Frequency range: |
1Hz-2000Hz (hydraulic type), 5Hz-500Hz (electric type) |
Product details
Application:
✅Aerospace: Real time attitude adjustment in flight simulators, rocket launch vibration testing.
✅Virtual Reality: 6DoF VR devices provide dynamic feedback to enhance immersive interactive experiences (such as racing simulations and earthquake simulations).
✅Industrial testing: durability verification of automotive suspension, kinematic calibration and load testing of robots. Scientific research
✅Experiments: precise optical equipment positioning, dynamic response research of large-span structures (such as FAST radio telescope feed cabin control).

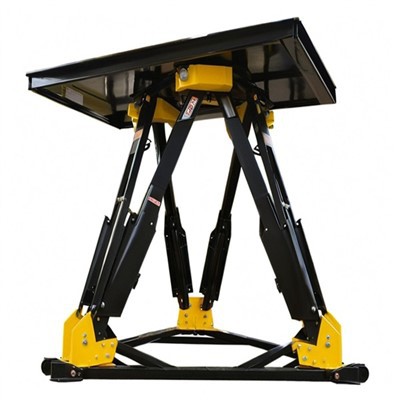

Photos of 6 DOF Rotational Platform
Packaging and delivery
Packing: by container or as customers's required.
Delivery: deliver to major ports in your country.
FAQ
Q: What are the core differences compared to traditional three degree of freedom platforms?
A: The six degree of freedom platform supports composite motion of translation and rotation (such as simulating the coupling effect of roll and acceleration during turning), while the three degree of freedom can only achieve a single type of motion (translation or rotation).
Q: How to choose between hydraulic and electric drive?
A: Hydraulic systems are suitable for high load (400kg), low-frequency large displacement scenarios (such as building seismic testing), while electric systems have higher accuracy and lower maintenance costs, making them suitable for precision micro motion control (such as chip packaging testing).
Q: Does it support multi platform linkage?
A: Multi platform collaboration can be achieved through distributed control interfaces (such as ROS nodes) to simulate complex dynamic environments (such as multi vehicle collaborative obstacle avoidance testing).
